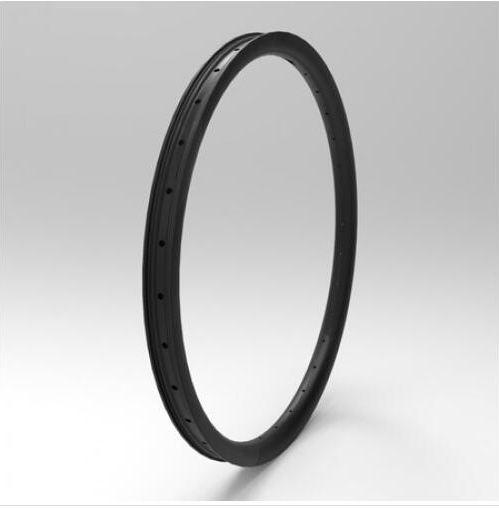

CBR [Down Hill] 40mm Width Carbon Fiber 26" MTB Clincher Rim Tubeless Compatible

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

Description

Description


Basic





Item #: CBR26er-40width DH
Material: Toray  T700 Carbon Fiber
Rim Type: ClincherWarranty: 2 Years

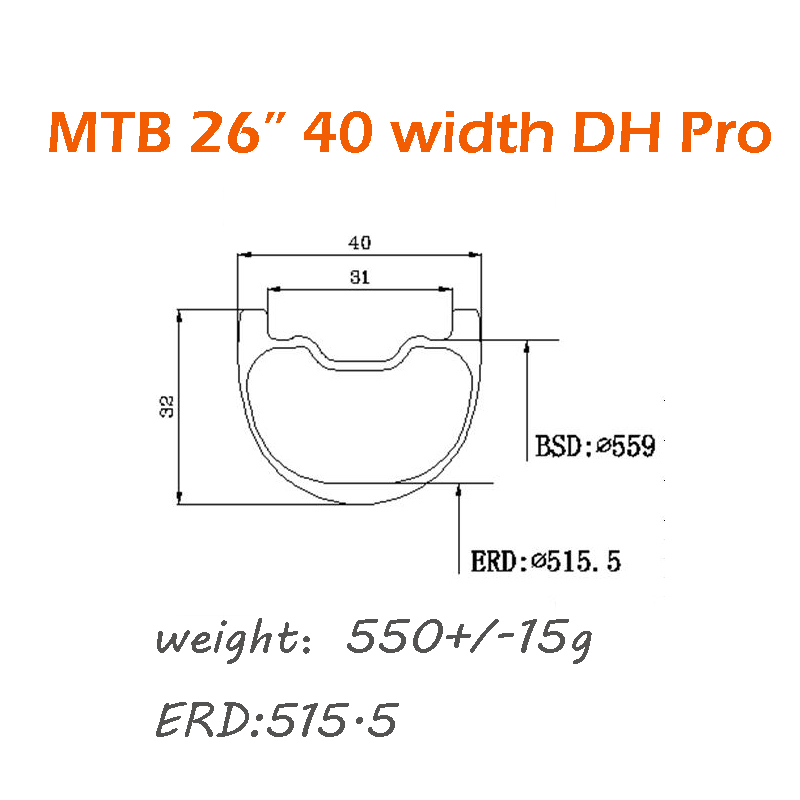

Dimension
Size:26"

BSD: 559mm

ERD: 515mmSpoke Hole Dia.: 2.3mm 4.5mm
depth: 32mmwidth:40mm
Valve Hole Dia.: 6.5mmweight:550+/-15g
Assembly Hole  Dia.: 7.5mmHole count: 10-36
Recommendation
Tire Size: 2.3"~3.0"Max Spoke Tension: 130kgf
Weight Limit: 200kgMax Tire Pressure: 60psi
Appearance
Weave: UD / 3K/12kFinish: Matte   / Glos

Application

  • XC / Trail




Design Features

  • The wider the rim, the better the contact patch with the ground for tires. Also, the air volume in the tire increases, smoothing

       out the small bumps that cause your hands and wrists to get cramped up.


Tubeless Compatible

        Tubeless Compatible: This function allows you to run tubeless perfectly.


 overall System

  • The System: The system is another technical method to strengthen the rim by using long and continuous carbon fiber layers to wrap into rim. For only one overlap of a layer circle, not only can it keep the original continuous strength of carbon fiber layers, but also it saves weight;
